Let the Hounds Out! Everything About Sliding Door Pet Inserts
How a Sliding Door Dog Door Insert Works and Its Key Benefits
A sliding door dog door insert is a modular, vertical panel engineered to slide right into the open track of your existing patio door. The concept is straightforward: you slide your human glass door open, set the pet insert panel inside the top and bottom track channels, and then slide your glass door shut against the edge of the insert. This creates a secure, weather-sealed frame with an integrated flap at the bottom for your four-legged family members.
Most inserts utilize a clever spring-loaded top section or adjustable height expansion system. By pushing up into the upper track, the unitcompresses, clears the bottom rail, and drops securely into place. You can learn more about these versatile setups in our complete guide to everything you need to know about sliding glass pet door inserts.
Non-Permanent Design vs Traditional Pet Doors
Comparing an insert to traditional pet door options reveals clear advantages:
- Zero Structural Damage: Wall-mounted pet doors require cutting through exterior siding, insulation, drywall, and electrical wiring. Door-mounted flaps require cutting holes through solid wood, fiberglass, or steel entry doors. A sliding door dog door insert requires no cutting or drilling.
- Tool-Free Setup: Most spring-loaded panels can be installed in under 15 minutes without power tools or specialized carpentry skills.
- 100% Rental Friendly: Because it leaves no permanent scars on the property, renters can easily take the insert along when moving, ensuring they retain their security deposit.
- Instant Removal: If you’re hosting a backyard gathering or leaving town for an extended vacation, you can pop the entire panel out in under a minute and lock your standard patio door back up.

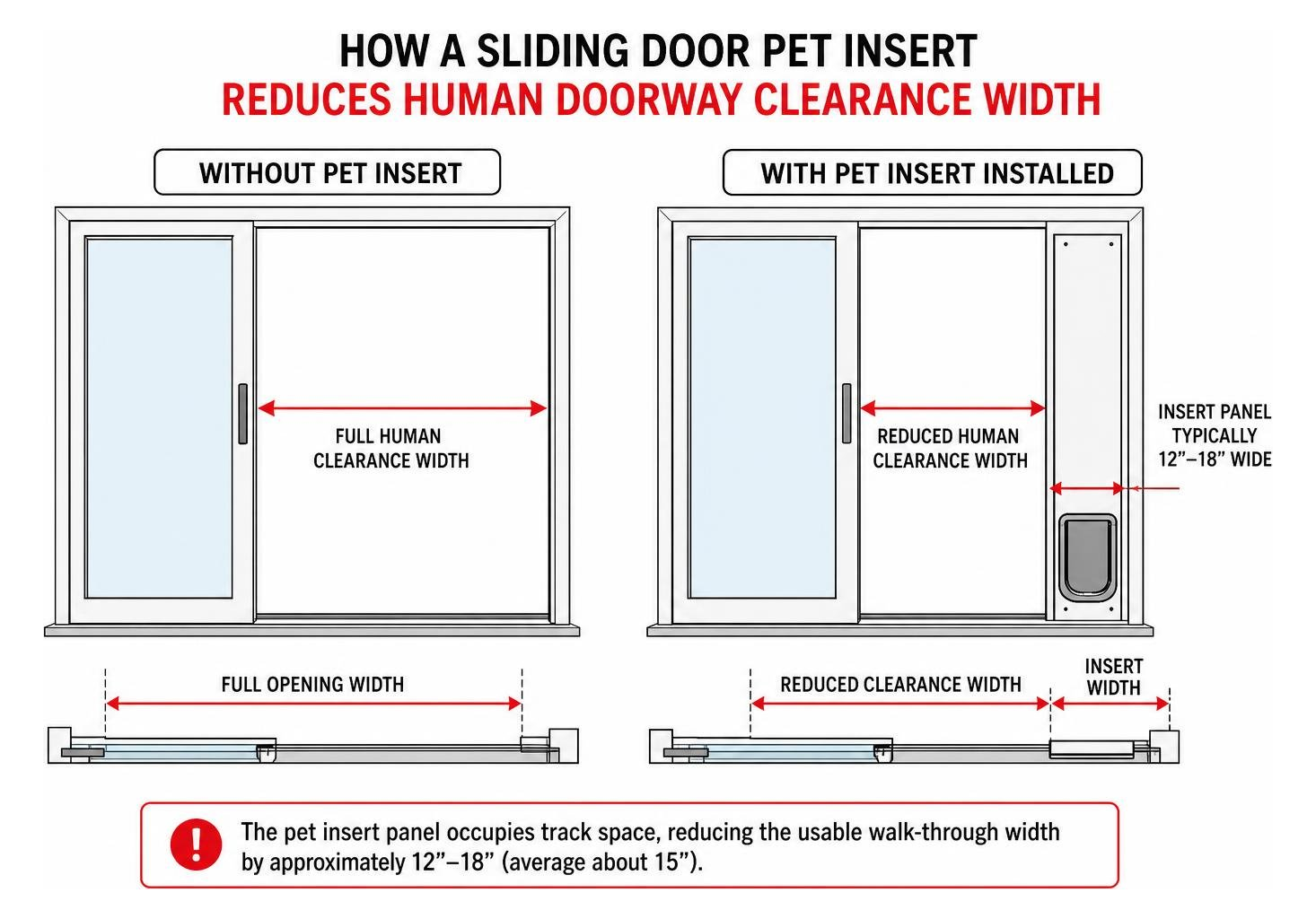

Usability and Impact on Human Passage
While the benefits are significant, installing a panel panel insert does introduce a practical trade-off: it reduces the usable walk-through width of your doorway.
When you install a sliding glass door dog door, the insert consumes horizontal track space. Depending on the size of the pet flap, the insert frame usually consumes roughly 12 to 18 inches (with 15 inches being the standard average) of your exposed door opening. If you have an 8-foot-wide patio slider, this reduction is barely noticeable. However, on a tight 5-foot, two-panel sliding door, losing 15 inches can make walking through with groceries or laundry baskets a tight squeeze.
Key Factors: Flap Materials, Insulation, and Weather Performance
When selecting a sliding door dog door insert, local weather conditions should guide your decision. A cheap, single-layer vinyl flap might work in mild coastal climates, but it will let freezing air rush into your living room during a Midwest winter.
High-end pet door flaps use specialized polyolefin or advanced polymer materials rather than cheap vinyl. Polyolefin remains flexible in extreme temperatures down to -40°F, preventing cold snaps from turning your pet’s door into an inflexible sheet of hard plastic. To keep energy costs down, high-end inserts feature heavy-duty magnetic seals along the sides and bottom edge. Premium flap assemblies, such as those engineered by Endura Flap, are rated to stay sealed shut in wind gusts blowing up to 50 MPH.
Evaluating Thermal Performance in a Sliding Door Dog Door Insert
For true energy efficiency, the flap is only half the equation — glass quality matters just as much. Basic entry-level inserts feature cheap, single-pane glass that acts as a thermal bridge, radiating cold winter air or scorching summer heat into your home.
High-performance models feature dual-pane Low-E tempered safety glass. Dual-pane glass isolates indoor temperatures from outdoor weather, keeping your HVAC system running efficiently. Pairing dual-pane glass with a double-flap design creates a dead-air insulation chamber right over the pet passage. Combining this with high-density brush pile weatherstripping and center-post draft stoppers seals off gaps between the sliding glass panel and the insert. For local energy considerations, read our guide on energy efficient pet door installation IL keeping the cold out.
Frame Materials and Long-Term Durability
The construction of the vertical insert frame itself plays a major role in how long it lasts:
- Aluminum Frames: Highly durable, light, and rust-proof. Aluminum frames handle exterior weather exposure cleanly and are ideal for standard aluminum patio door tracks.
- Vinyl (PVC) Frames: Typically built with thicker 1.5-inch frames to fit cleanly into wider vinyl sliding door tracks. Matching vinyl frames to existing vinyl doors eliminates thermal condensation gaps and ensures a seamless aesthetic match.
Security, Smart Access, and Locking Mechanisms
A common concern homeowners raise is security: If my sliding door is held partially open by a pet insert, how do I prevent intruders from sliding the door open or lifting the panel out?
Because your sliding door’s factory latch won’t align with its original jamb strike plate while the insert is installed, you must use secondary security locking hardware.
- Adjustable Security Bars (Charley Bars): Heavy-duty telescoping steel bars mounted horizontally into the sliding door’s interior track. They brace the back of the sliding panel firmly against the frame, preventing anyone outside from forcing the door open.
- C-Clamp and Track Locks: Small metal thumb-screw locks that attach directly into the upper or lower door track rails to block sliding door movement.
- High-Density Locking Covers: When you go to sleep or leave town, slide a rigid composite or heavy ABS plastic security cover over the pet opening from the inside to lock the flap completely.
Read more about balancing pet freedom with safety in the ultimate guide to the best pet door for sliding doors.
Smart Technology and Electronic Access Options
For high-tech access control, electronic smart pet door inserts provide selective access control. High Tech Pet motorized roll-up systems use directional ultrasonic sensors, RFID tags, or microchips attached to your pet’s collar.
When your pet approaches, the panel automatically retracts upward inside the aluminum housing. Because smart flaps close via gravity and weigh under two pounds, built-in safety-retract systems keep pets safe during entry and exit.
Keeping Pests and Intruders Out
Standard flap inserts can occasionally let in adventurous neighborhood cats, raccoons, or outdoor pests. Automated electronic options solve this by remaining locked until your pet’s collar sensor is detected. Furthermore, quality magnetic seals on manual flap doors keep flaps resting flat, keeping bugs, mice, and cold air from leaking inside.
Sizing, Measuring, and Training Your Pet
Choosing the right size sliding door dog door insert requires measuring both your dog and your patio door frame accurately.
Measuring Your Patio Frame for a Sliding Door Dog Door Insert
Before buying, measure your door frame height carefully using a tape measure:
- Measure Inside the Track: Place the tape inside the deepest part of the bottom track channel and measure straight up to the inside ceiling of the top track channel.
- Verify Track Heights: Standard patio slider heights typically fall between 75 7/8 inches and 81 inches. Modular tall-door inserts accommodate heights up to 96 inches.
- Check Channel Thickness: Ensure your track channel width (commonly 1 inch for aluminum, 1.5 inches for vinyl) matches the thickness of the insert frame.
For a complete step-by-step assembly overview, see the weekend warriors guide to easy DIY pet door slider kits.
Selecting the Right Opening for Your Dog Breed
To determine proper flap clearance, measure your dog’s width at the shoulders and height from the floor to the highest point of their shoulders (withers). The top of the flap should sit at least 1 inch above your pet’s shoulder height.
Pet Training and Adjustment Tips
Teaching your dog to use their new pet door takes patience:
- Start Without the Flap: Tape the flexible flap open for the first few days so your pet gets comfortable walking through the open frame.
- Reduce Magnet Resistance: On heavy, weather-sealed magnetic doors like the Endura Flap, temporary removal of individual side magnets makes pushing through easier for small dogs or cautious puppies.
- Use Treat Incentives: Have one person stand inside and another outside, calling the dog through the opening with high-value treats and positive praise.
Cost Breakdown and Model Comparison
The cost of a sliding door dog door insert varies based on glass quality, flap material, and technological features.
- Basic Single-Pane Panels ($120 – $250): Budget options (like basic PetSafe or online economy brands) use light single-pane glass and thin vinyl flaps. Best for temporary use, rentals, or mild climates.
- Insulated Premium Panels ($350 – $850): Mid-to-high-tier options (such as Endura Flap, Thermo-Panel 3e, or Liberty Vinyl) feature heavy dual-pane Low-E glass, durable polyolefin flaps, and robust weather seals built for severe weather conditions.
- Smart Motorized Panels ($900 – $1,400+): High-end choices (like the High Tech Power Pet Roll-Up) feature motorized automatic opening, ultrasonic collar key access, and smartphone connectivity.
| Feature / Category | Basic Panel ($120-$250) | Insulated Panel ($350-$850) | Smart Motorized Panel ($900-$1,400+) |
|---|---|---|---|
| Glass Type | Single-Pane | Dual-Pane Low-E Safety Glass | Dual-Pane Low-E Safety Glass |
| Flap Construction | Single Vinyl Flap | Polyolefin / Multi-Flap Magnetic | Motorized Panel (No Flap) |
| Wind & Weather Resistance | Low (Drafts in high wind) | Extreme (50+ MPH wind rating) | High (Fully sealed panel) |
| Intruder Access Control | Manual Slide-In Plate | Manual Locking Cover | Automatic Collar RFID / Sensor |
| Best For | Mild Climates & Rentals | Cold Winters & High Winds | High Security & Timid Pets |
If you are torn between a removable insert or replacing your glass entirely, check out our comparison on built-in vs insert choosing the best sliding glass door with a dog door.
Frequently Asked Questions About Patio Pet Inserts
Can I still lock my sliding glass door with a pet door insert installed?
Yes! While the factory latch mechanism won’t catch because the sliding door rests against the insert instead of the frame jamb, you can lock the setup using adjustable security bars (Charley bars) installed horizontally in the track, C-clamp locks attached to the upper rail, or deadbolt pins inserted into the door frame.
Will a pet door insert reduce human walk-through space?
Yes. An insert panel rests directly inside your open sliding door track, taking up horizontal walk-through width equal to the panel’s width. This typically reduces human walk-through clearance by roughly 12 to 18 inches (15 inches on average).
Are sliding patio door inserts suitable for rental homes?
Absoutely. Most inserts use spring-loaded vertical extension panels or tension mounts, allowing them to install without screws, nails, or permanent adhesive. You can pop the panel out in seconds without damaging the door frame or risking your security deposit.
Conclusion
Finding the right sliding door dog door insert allows your pets to go outside whenever they need to while keeping your home comfortable and secure. Whether you opt for a budget-friendly panel for temporary rental use or an insulated dual-pane setup built to handle extreme winters, choosing the correct size and frame fit is essential.
If you find that an insert panel takes up too much human walk-through space or lets in drafts around an older, worn patio door, upgrading your system may be the best path forward. At Rooster Windows and Doors, LLC, we offer full-service replacements and custom patio installations across Chicagoland. Explore our dedicated sliding glass door installation services to build a durable, energy-efficient doorway solution for your home today!
