Beginner’s Guide to Finding a Compatible Large Dog Door Insert

Find a Compatible Large Dog Door for Sliding Glass Door Panels

A large dog door for sliding glass door setups is usually a removable patio panel that fits into the existing door track. It gives a big dog access to the yard without cutting the glass, replacing the door, or opening a wall.

For a quick match, check these three details before you buy:

Measure the track height, from the deepest point of the bottom channel to the inside of the top channel.
Measure your dog, choosing a flap that is wide enough for their body and leaves about 1.5 to 2 inches above the shoulders.
Check the track and frame type, since aluminum and vinyl sliding doors need panels designed for their specific track widths and shapes.

Large inserts range from common openings around 10 by 16 inches for many large dogs to roughly 15 by 28 inches for giant breeds. The right choice also needs to preserve as much weather sealing, security, and usable walking space as possible.

I’m Piotr Wilk of Rooster Windows and Doors, LLC. With more than two decades of residential window and door installation experience across Chicagoland, I have seen why correct measurements and track compatibility matter when choosing a large dog door for sliding glass door panels.

Large dog door for sliding glass door terms to remember:

Why Choose an Insertable Large Dog Door for Sliding Glass Door Panels?

When you own a heavy dog, like a 90-pound Golden Retriever or a 150-pound Newfoundland, granting them outdoor access presents a architectural puzzle. Cutting a hole through an exterior wall requires framing, header installation, drywall repair, and siding flashing. Cutting directly into existing door wood or metal slabs destroys panel integrity. Moreover, tempered safety glass on standard patio sliders cannot be cut on site without shattering the entire pane.

This is where a removable panel insert shines. Insertable pet doors fit straight into your sliding door’s exterior track. They compress vertically using internal spring mechanisms and clamp against the existing sliding door frame, providing an instant passage without requiring structural alterations.

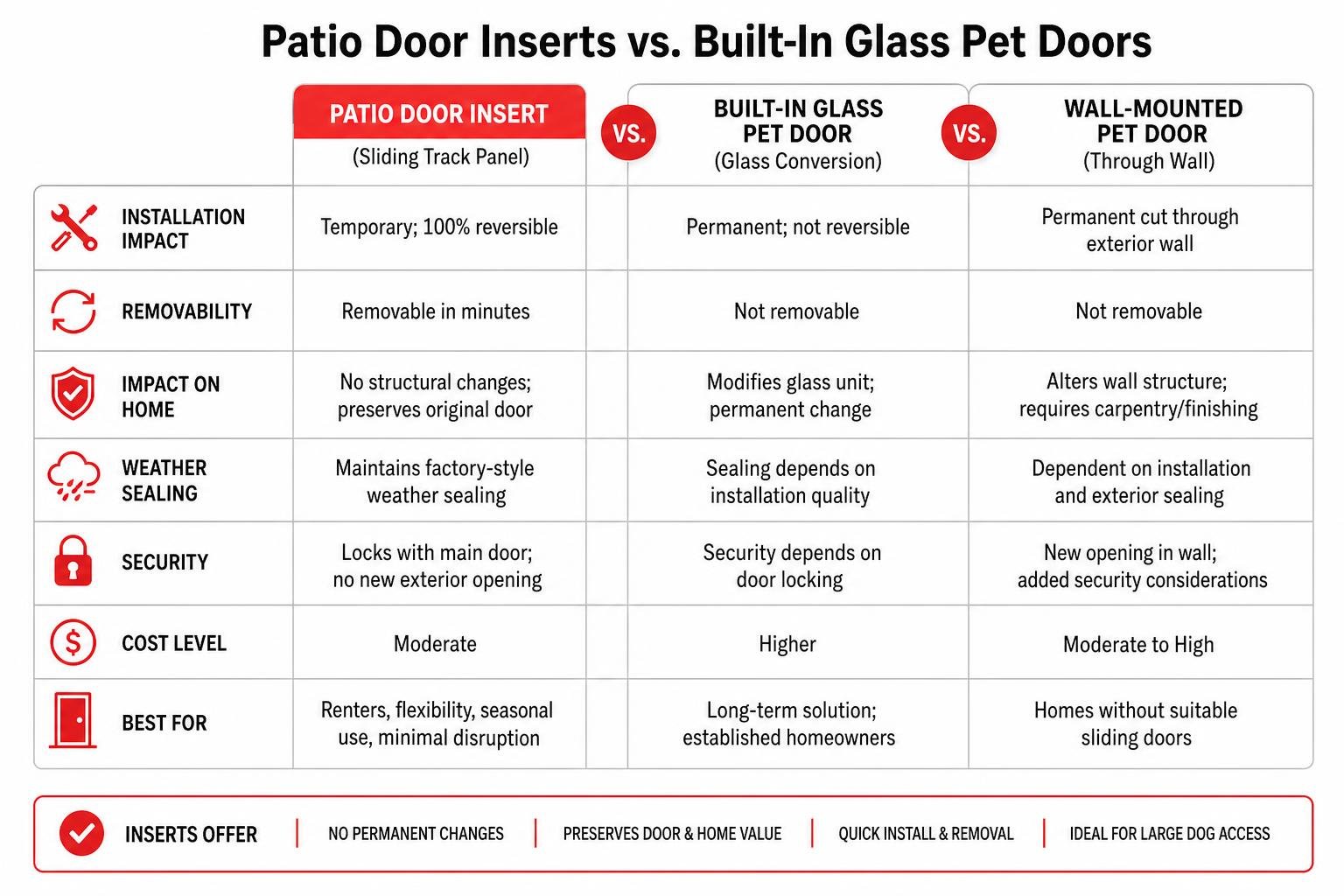

To help you decide between panel inserts and other permanent solutions, here is a quick direct comparison:

Feature	Sliding Track Panel Insert	Built-In Glass Conversion	Wall-Mounted Pet Door
Installation Impact	Temporary; 100% reversible	Requires custom dual-pane glass	Permanent cut through exterior siding/drywall
Renter Friendliness	Excellent; zero holes drilled	Moderate; original glass must be stored	None; damages home structure
Installation Time	15 to 30 minutes	Professional setup required	2 to 4 hours of construction
Walkthrough Width	Reduces human entry space	Preserves 100% human walking width	Preserves patio door width
Thermal Performance	Good to Superior (model dependent)	Excellent (factory double-pane Low-E)	Excellent (insulated tunnel kit)

If you own your home and want to maximize human walkthrough space, custom glass conversions remain popular. You can explore our breakdown on Built-in vs Insert Choosing the Best Sliding Glass Door with a Dog Door to evaluate permanent factory alternatives.

For multi-pet households, insertable panels are extremely versatile. A house with a 110-pound Lab and a 25-pound Beagle can use a single large panel insert as long as the step-over height is low enough and the flap flexible enough for the smaller pet to push through easily.

Sizing Flaps for a Large Dog Door for Sliding Glass Door Units

Selecting the right flap size involves more than checking your dog’s total body weight. Shoulder height and chest width are the true critical metrics. If a flap is too low, your dog will hunch down, causing strain on their spine and hips over time. If it is too narrow, their shoulders will rub against the rigid side frame.

Follow these primary guidelines when measuring your pet:

Flap Height Clearance: The top of the pet door opening should sit at least 1.5 to 2 inches above the tallest dog’s shoulder height (the ridge between their shoulder blades).
Flap Width: The flap width should measure at least 1 to 2 inches wider than the widest part of your dog’s shoulders or hips.
Step-Over Rise: The step-over rise is the frame border height between the bottom of the sliding track and the bottom of the flexible flap. For young, agile dogs, a 4- to 8-inch rise is standard. For senior dogs suffering from arthritis or dysplasia, keep the rise as low as 2 inches off the ground to prevent tripping.

Standard large dog doors accommodate pets between 70 and 100 pounds with passage openings around 10.25 to 10.5 inches wide by 15 to 16.375 inches high, such as the Extreme Weather Sliding Glass Pet Door™ | PetSafe®.

Extra-large and giant breeds—such as Mastiffs, Great Danes, or St. Bernards weighing up to 220 pounds—require substantial openings. Models offering 13.625″ x 23.625″ or massive 15″ x 28″ passage spaces like the Security Boss Giant Breed Patio Pet Door ensure giant breeds step through comfortably without pinching their backs. For extreme breed sizes, reviewing giant breed patio pet door specs helps avoid costly sizing mistakes.

Installing a Large Dog Door for Sliding Glass Door Tracks in Rental Homes

Renters in apartment buildings or suburban single-family rentals across Arlington Heights, Evanston, and Chicago face strict lease rules against modifying exterior doors. A large dog door for sliding glass door tracks offers the ultimate renter-friendly setup because it installs without drilling holes into the vinyl or aluminum framing.

The core technology behind non-permanent panels is a spring-loaded top extension section. The panel insert features an adjustable spring mechanism in its top “H-channel.” To install:

Lift the top of the panel into your sliding door’s upper track, fully compressing the spring-loaded section.
Swing the bottom of the panel inward and drop its lower “C-channel” over the bottom track rail.
Release the panel. The internal springs push upward against the top track, locking the vertical column securely into place.
Hand-tighten interior thumbscrews or height adjustment screws to lock the spring height.

Many modern inserts, like the VEVOR Sliding Glass Dog Door, use tool-free installation mechanics and temporary double-sided adhesive strips rather than mounting screws. When your lease expires, you simply loosen the side adjustment screws, compress the top piece, lift the panel out, and take it to your next home. Check out The Weekend Warriors Guide to Easy DIY Pet Door Slider Kits for step-by-step assembly tips.

Measuring Your Door and Selecting Frame Materials

Before browsing retail options on Lowe’s sliding pet doors or general sliding glass dog door collections, you must perform precise measurements of your existing patio door opening. Relying on standard estimates leads to drafts or ill-fitting panels.

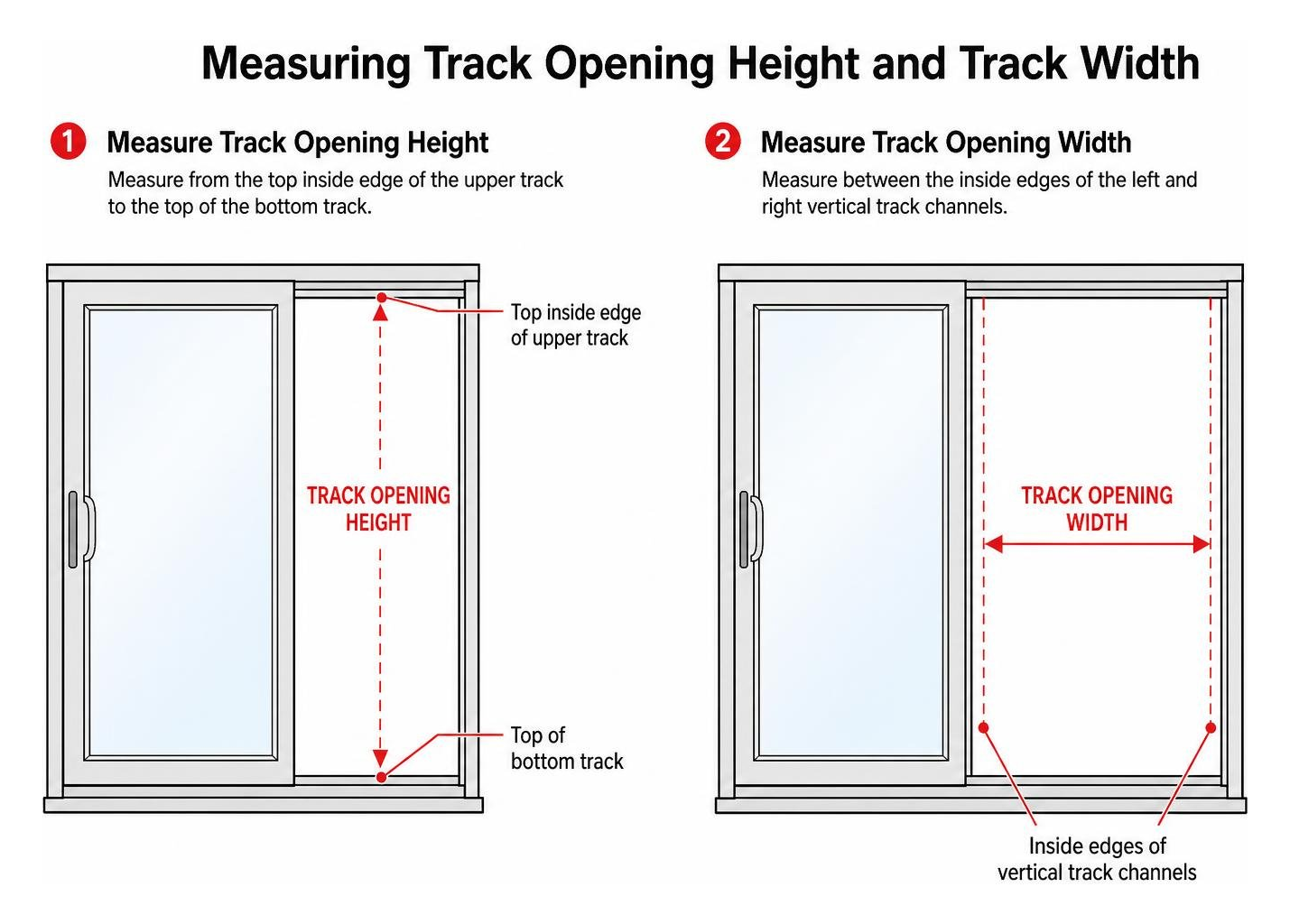

Measuring Track Opening Heights

Do not measure the glass pane itself! You must measure the track opening from inside the frame channels where the panel will sit:

Open your sliding glass door fully.
Place a tape measure flat inside the deepest channel of the bottom floor track.
Measure straight up to the highest inside point of the upper head track.
Record the measurement down to 1/16th of an inch.

Most standard single-piece sliding pet panels cover height ranges from 75 7/8 inches to 81 inches (such as 77.6 to 80.4 inches on options like the Ideal Pet Products Extra Large Patio Door Insert). If you live in a custom home in Lake Forest or Highland Park with tall 8-foot patio doors, you will need a tall-range model or modular height extensions designed to span 84.5 to 99 inches.

Vinyl vs Aluminum Track Compatibility

Identifying whether your patio frame is constructed from aluminum or vinyl dictates which insert panel you must order. Attempting to fit an aluminum insert into a thick vinyl track creates stability issues and leaves air gaps.

Aluminum Frames: Common in older homes or commercial style sliders. Aluminum tracks are thin, metal-colored, and typically measure between 1.0 and 1.5 inches wide. The bottom guide rail is narrow (often under 5/16 inch). Aluminum inserts, such as metal options found in XL Dog Door for Sliding Glass Door models on Amazon, fit tightly inside these narrow tracks.
Vinyl Frames: Dominant in suburban homes built or updated since the mid-1990s. Vinyl door tracks are wider, usually measuring 1.5 inches to 2 inches or more, with rounded plastic tracks. Installing a thin metal insert into a wide vinyl track causes wobbling unless wide vinyl-compatible trim kits are used.

If you are upgrading an entire patio entry, our guide on Installing Vinyl Sliding Glass Door details how vinyl framing improves thermal retention across Midwestern seasons.

Special care is also needed for monorail tracks. A monorail system features a single raised center rail rather than dual parallel channels. Standard inserts with narrow “C-channels” will not sit flush on monorail setups unless specialized adapter track adapters are installed.

Key Weatherproofing and Security Features

A large dog door for sliding glass door frame opens a wide vertical column in your exterior wall. In Northern Illinois, where freezing winter winds blow off Lake Michigan and summer humidity hits hard, poor insulation will lead to skyrocketing energy bills.

Thermal Insulation and Draft Control

Cheap plastic pet flaps warp, harden in cold temperatures, and allow howling winter drafts to enter your living room. When evaluating high-performance pet panels, pay close attention to flap technology and glass construction:

Dual-Pane Low-E Glass: Standard single-pane glass inserts lose heat rapidly. Top-tier models feature dual-pane tempered glass treated with Low-E (low-emissivity) coatings to reflect interior heat back into your home during winter while blocking solar heat during summer. High Tech Pet’s Armor Flex Patio Pet Door is an example of an insulated Low-E panel designed for high energy efficiency.
Magnetic Draft Seals: Premium panels use heavy-duty flexible polyolefin flaps lined with strong permanent magnets along both vertical side edges and the bottom bar. Multi-flap systems create dead air space between exterior and interior layers, providing superior draft resistance.
Weatherstripping and Foam Seals: Because inserting a panel breaks the tight interlock between your sliding door edge and fixed glass pane, air can leak between the overlapping glass. High-quality inserts include rubber bulb seals and foam weatherstripping to bridge this vertical gap.

For homeowner guidance on draftproofing, read our detailed article on Energy Efficient Pet Door Installation IL Keeping the Cold Out.

Sliding Patio Door Locks and Physical Security

One common concern homeowners express is home security: How do you lock a sliding door when a pet panel is resting in the track?

Because the insert sits in the track, your sliding door’s original handle latch cannot reach the side jamb lock receiver. To restore physical security, employ these reliable secondary locking systems:

Charley Bars / Security Bars: An adjustable heavy-duty aluminum bar mounted horizontally between the rear edge of the active sliding door pane and the opposite frame wall. When lowered into position, it physically stops the slider from being pushed open from the outside.
C-Clamp / Track Locks: Small metal thumb-screw clamps that attach directly onto the upper or lower door track right behind the active door pane, immobilizing movement.
Slide-In Closing Panels: Every reputable large pet door insert includes a solid composite or steel locking cover. You slide this cover over the interior flap frame when you are away on vacation or at night to prevent unwanted animals or intruders from utilizing the pet opening.
Security Sensors: If you have a monitored home alarm system, contact sensors on the patio slider will be offset by the panel width. You will need to re-align or install a secondary wireless sensor on the main sliding frame.

Frequently Asked Questions About Sliding Glass Dog Doors

How secure is a patio panel insert compared to a standard door lock?

When properly secured with an extendable Charley bar or track pin lock, a patio panel insert is just as secure as a standard sliding door lock. In fact, standard factory slider latches are notoriously easy to bypass; a rigid metal security bar braced horizontally against the frame provides superior mechanical resistance against forced entry. Additionally, heavy locking cover plates block physical access through the flap itself.

Will a large pet insert restrict human walking space?

Yes, installing a panel insert reduces the usable human walkthrough clearance of your patio door by the exact width of the insert panel frame. A panel designed for a large or giant dog generally measures 15 to 20.5 inches wide. On a standard 6-foot sliding door (which has roughly 32 to 34 inches of clear opening space), a giant pet panel will reduce human passage space to around 12 to 18 inches. In tighter openings, humans may need to turn sideways to walk through, or step out through another door.

How long do replacement flaps and panels typically last?

Aluminum and vinyl frame structures typically last the lifetime of the home. Flexible flaps, however, undergo continuous flex, UV rays, and severe weather exposure. On average, a quality magnetic flap lasts between 3 to 7 years depending on dog usage and extreme weather exposure. The primary reasons for premature flap replacement are pet chewing behavior during early training, magnet misalignment from heavy wear, or severe freeze-thaw cycles stiffening lower-grade vinyl.

Conclusion

Finding the right large dog door for sliding glass door setups comes down to taking accurate track measurements, verifying dog shoulder clearance, matching vinyl or aluminum frame profiles, and selecting double-pane glass with magnetic seals to handle Midwestern seasonal swings. Whether you rent a townhome in Schaumburg or own a residence in Libertyville or Lake Zurich, a properly chosen panel insert provides your pet freedom while keeping your home comfortable and secure.

If you prefer a permanent solution that preserves 100% of your human walking space and maximizes energy performance, replacing your sliding door pane with a factory-integrated pet door is a great path. At Rooster Windows and Doors, LLC, we specialize in high-quality, energy-efficient window and door replacements across Chicagoland. Explore our professional sliding glass door installation services today to discover custom entry solutions built specifically for your home and family!
