Everything You Need to Know About 12-Foot Sliding Glass Doors at Home Depot

Available Configurations for a 12-Foot Sliding Glass Door Project

Finding a 12 foot sliding glass door home depot shoppers can buy straight off the shelf can be tricky. A 12-foot opening equals 144 inches in width. Because of the size and weight of these glass panels, vast openings require specific panel configurations.

Stock vs Custom Sizing for Large Openings

When browsing the aisles or website for standard Sliding Patio Door models, you will quickly notice that off-the-shelf units cap out at smaller standard widths, such as a 60 in. x 80 in. (5 ft x 6 ft 8 in.) configuration.

The closest stocked or standard-catalog large-format units include 108 in. x 96 in. (9 ft x 8 ft) patio doors. If your rough opening requires a full 144-inch width, it must be ordered as a custom prehung assembly. Exploring custom options is part of checking out various Patio Door Replacement Options to get the ideal fit without compromising structural integrity.

Evaluating Stacking and Multi-Panel Styles for a 12-Foot Sliding Glass Door Order

For a 12-foot wide span, you generally choose between two primary mechanical designs:

4-Panel Center-Opening Doors: Two center panels slide outward over two fixed outer panels.
Stacking Sliding Doors: Multiple panels slide along parallel tracks and stack neatly over one another on one side. A primary retail example of this design is the 108 in. x 96 in. White in Left Hand/Slide Fiberglass Full Lite Glass Stacking Sliding Patio Door, which retails around $6,229.00 and maximizes the usable walk-through opening.

How to Measure and Choose Handing for a 12-Foot Prehung Door

Before committing to a custom order, getting your measurements down to the exact fraction of an inch is paramount.

Measuring the Rough Opening Width and Height

Measuring for wide sliding patio doors requires assessing multiple points to account for settling or uneven framing:

Width: Measure the top, middle, and bottom of the rough opening from stud to stud. Record the smallest measurement.
Height: Measure from the subfloor to the header on the left, middle, and right sides. Record the smallest measurement.
Squareness: Measure diagonally from corner to corner in an ‘X’ shape. If the two diagonal measurements differ by more than a quarter-inch, the opening must be squared up during framing adjustments.

Following proper steps for Sliding Glass Door Installation ensures that your 12-foot door frame sits plumb, level, and square.

Determining Left-Hand vs. Right-Hand Sliding Door Orientation

Door handing determines which direction the operable panels move. Stand outside your home facing the door:

Left-Hand (LH) Slide: The operable panel is on your left and slides toward the right to open.
Right-Hand (RH) Slide: The operable panel is on your right and slides toward the left to open.

For smaller companion doors like the 60 in. x 80 in. Smooth White Left-Hand Composite Sliding Patio Door with Built in Blinds , specifying left-hand or right-hand slide is straightforward. On a 12-foot door with four panels, handing typically refers to which center panel slides first or whether the panels stack to the left or right.

Materials, Glass Options, and Energy Efficiency

Selecting the right combination of frame material and glass pane technology impacts durability, thermal performance, and long-term maintenance.

Frame Material	Rot Resistance	Structural Rigidity	Maintenance Needs	Relative Cost
Composite	Excellent (100% waterproof)	High	Low	Moderate – High
Fiberglass	Excellent	Very High (minimal expansion)	Very Low	High
Vinyl	High	Moderate	Low	Budget-Friendly

Composite vs Fiberglass Frame Durability

Large glass panels exert tremendous pressure on door frames. Choosing the right material ensures the track won’t warp over time:

Composite Frames: Formulated with blended polymers and wood fibers, a full composite frame system will never rot, warp, or absorb moisture.
Fiberglass Frames: Offers exceptional tensile strength and thermal stability. Fiberglass expands and contracts at virtually the same rate as glass, reducing stress on window seals.

When comparing options, reviewing tips on Installing Vinyl Sliding Glass Door frame systems helps highlight why heavy 12-foot units often perform better with reinforced fiberglass or composite builds.

Glass Types, Built-In Blinds, and Thermal Ratings

A 12-foot patio door represents a large area of glass, making energy efficiency ratings crucial for climate control in the Chicagoland area:

Low-E Coatings & Argon Gas: Reflects heat while allowing sunlight through, keeping your home cooler in summer and warmer in winter. Look for low U-factor and Solar Heat Gain Coefficient (SHGC) ratings.
Built-In Blinds: Sealed between two panes of tempered glass, built-in blinds eliminate dust and tangled cords.
Full Lite Glass: Maximizes visible daylight and offers unfiltered views of the outdoors.

To manage privacy and light control for full-lite panels, explore creative Window Treatment Ideas for Sliding Glass Doors. (And if you have pets, check out integrated options like a Sliding Glass Door Dog Door!).

Cost Factors, Shipping, and Return Policies

Understanding the full financial picture—from retail door prices to delivery logistics—prevents unexpected costs.

Cost Expectations and Custom Pricing Factors

A 12 foot sliding glass door home depot custom package ranges in price based on material and features:

Base 12-Foot Custom Systems: Start around $4,000 to $6,000 for standard multi-panel vinyl or basic composite setups.
Premium Stacking/Fiberglass Systems: Standard 9-foot premium models (like the 108″ x 96″ MP Doors fiberglass door) retail at $6,229.00. Scaling up to a custom 12-foot system can range from $7,000 to over $10,000 depending on glass packages, hardware finish, and internal blinds.

To learn more about overall pricing structures, read our guides on The Complete Breakdown of Sliding Glass Door Replacement Costs and The Complete Guide to Sliding Patio Door Options Prices.

Ordering a 12-Foot Sliding Glass Door Shipping and Return Guidelines

Delivery: Due to the extreme size and weight, these units are shipped via specialized freight lines. Deliveries are typically curbside, meaning you must have adequate hands on-site to transport the crated door to a secure location.
Return Policies: While off-the-shelf items like the Pinecroft 32 in. x 97 in. Glass Sliding Barn Door with Hardware Kit or standard stock doors fall under standard 90-day return policies, custom-ordered 12-foot doors are typically non-refundable unless damaged during transit or structurally defective upon arrival.

Crucial Installation Considerations for 12-Foot Sliding Patio Doors

Installing an oversized patio door is a complex task that requires precise structural prep work.

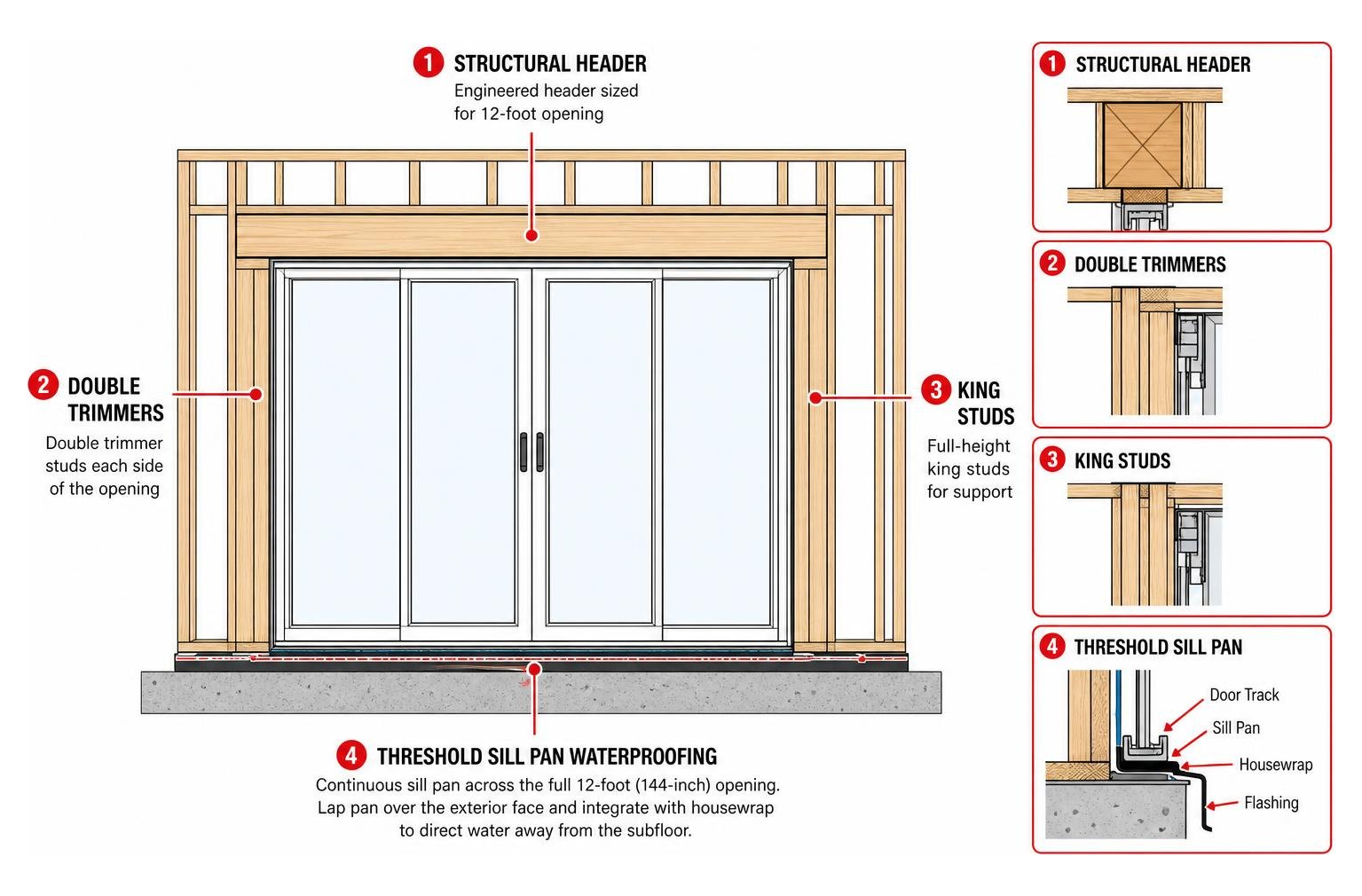

Load-Bearing Headers and Framing Requirements

A 12-foot span creates a substantial gap in your home’s exterior load-bearing wall.

Structural Support: The structural header above the door must be sized by a professional engineer or architect to handle the overhead weight without sagging or deflecting. Header deflection can pinch the sliding door frame and bind the panels.
Sill Pan Waterproofing: A continuous, flashed sill pan is vital along the 144-inch floor threshold to direct water away from subfloors.

When deciding between structural entry styles, evaluate French Doors vs Sliding Doors to ensure a wide slider fits your wall layout better than hinged doors.

Track Alignment and Roller Operation

Perfect Leveling: If the bottom track sags even a fraction of an inch across 12 feet, the heavy panels will bind or fail to latch properly.
Heavy-Duty Tandem Rollers: Large multi-panel units utilize heavy-duty stainless steel or nylon tandem rollers. Proper track alignment ensures these rollers glide effortlessly.
Maintenance: Over years of use, keeping tracks clear of dirt and understanding Replacing Rollers on Sliding Glass Door will preserve smooth operation.

Frequently Asked Questions

Is a 12-foot sliding glass door available as a standard in-stock item?

No. A 12-foot (144-inch) width is not carried as an in-stock item at big-box retailers like Home Depot. Stock items top out at smaller sizes, such as 60 in. x 80 in. or standard 108 in. x 96 in. options. A true 12-foot configuration requires a custom special order or multi-panel modular ordering.

What is the price range for a 12-foot sliding patio door?

Depending on material (vinyl, composite, or fiberglass), panel configuration, built-in blinds, and thermal glass upgrades, the door unit itself generally costs between $4,000 and $10,000+. Additional costs for structural framing modifications, header installation, and professional labor apply.

How many people are needed to install a 12-foot sliding glass door?

Due to the sheer size and heavy weight of tempered glass panels, moving and setting a 12-foot assembly requires a team of at least 3 to 4 experienced installers to manage the weight safely and prevent frame twisting.

Conclusion

Upgrading your home with a 12 foot sliding glass door home depot order can transform your living space into a sun-filled retreat with stunning outdoor views. However, because 144-inch patio doors require custom ordering, heavy-duty structural headers, exact opening measurements, and specialized handling, careful planning is essential.
